1200℃三溫區三通道混氣真空滑動管式爐（配130mm石英管和防腐真空計）
關鍵字：
5"滑動法蘭 三溫區
型號：
OTF-1200X-5-III-SF
產品概述：
OTF1200X-5-III-SF is a?CE certified?split 5" (O.D) three-zone tube furnace, which can achieve faster heating up to 1200oC?and create a different thermal gradient by adjust three zone temperature.?The furnace includes all accessories for immediate use. It is an excellent furnace for annealing, diffusing and sintering sample in various atmospheres.
免責聲明： 本站產品介紹內容（包括產品圖片、產品描述、技術參數等）僅用于宣傳用途，僅供參考。由于更新不及時和網站不可預知的BUG可能會造成數據與實物的偏差，請勿復制或者截圖。如果您對參數有異議，或者想了解產品詳細信息及更多參數，請與本公司銷售人員聯系。本站提供的信息不構成任何要約或承諾，請勿將此參數用于招標文件或者合同，科晶公司會不定期完善和修改網站任何信息，恕不另行通知，請您諒解。 如果您需要下載產品的電子版技術文檔，說明書（在線閱覽），裝箱單，與售后安裝條件等文件，請點擊上方的附件下載模塊中選取。商城產品僅針對大陸地區客戶，購買前請與工作人員溝通，以免給您帶來不便。
技術參數產品視頻實驗案例警示/應用提示配件詳情
Furnace structure

· Double layer steel case with two cooling fan, which ensures low surface temperature.

· Energy saving high purity fibrous alumina insulation.

· 內爐膛表面涂有美國進口的高溫氧化鋁涂層可以提高設備的加熱效率，同時也可以延長爐膛的使用壽命

· One flange is supported by sliding rail to make sample loading /unloading easy, and another seal flange is installed with a digital vacuum gauge.

One Double Steps Rotary Vane High Speed Vacuum Pump (240 L/m) with Oil is included.
?Voltage & Power

· AC 208-240V Single Phase, 50/60 Hz  (40A breaker required).

· Powder cord is included without plug.

7 KW Max.
?Max. Temperature

1200 oC
?Continuous Temperature

1100 oC
Max. Heating Rate

<= 20 oC /min
?Tube Size and Flange

· 125 mm O.D x 120 mm ID. x 1400 mm fused quartz tube included.

Vacuum flanges with valves and pressure gauge are included.  Click picture below to see details.
Heating Zone Length

Three zones: (900mm, 36" in total)


· Zone 1: 229mm  (9")


· Zone 2: 457mm  (18.0")


Zone 3: 229 mm (9")
Constant Temp. Zone

· If set three zone at same temperature, constant temperature zone is 25" (625 mm) length within +/- 1oC

If using one zone (center zone),  constant temperature zone is 4.3" (110 mm) length within +/- 1oC
?Temperature Controllers

· Three Digital Controllers, and each has 30-segement

Built in protection from over-heated and broken thermo couple
?Temperature Accuracy

 +/- 1oC
Heating Element

Fe-Cr-Al Alloy doped by Mo
Dimension

1080 X 430 x 600mm
Net Weight

about 70 kg
Warranty & Certificate

One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order the replacement at related products below.)

·

·

 CE Certificate blob.png
Shipping package size after crating

65x45x35" ( x2)
Shipping weight

540 lbs
Mobile Cart & Flow meters

Gas mixing controls with three floating meters(range: 0-100 ml/min, 0-160 ml/min, 0-250 ml/min) are installed on one cart that allows three types of gases to operate during heating treatment.( click picture below left to see detail specs)

·

·

Two mobile carts are included to allow flange sliding onthe table

·

·

Optional:  for precision gas control, you may choose digital mass flow Control system instaed of float-meter at extra cost ( click picture below to see details )

·

blob.png                             blob.png

3 Channels Float-meter gas control      3 channels MFC gas control
相關產品
公司環境

23453[1].png   微信截圖_20220311162937.png

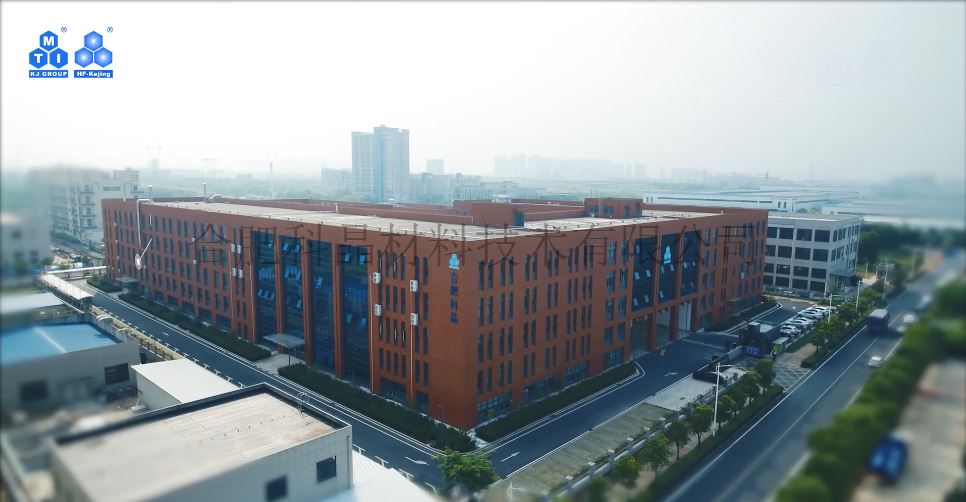

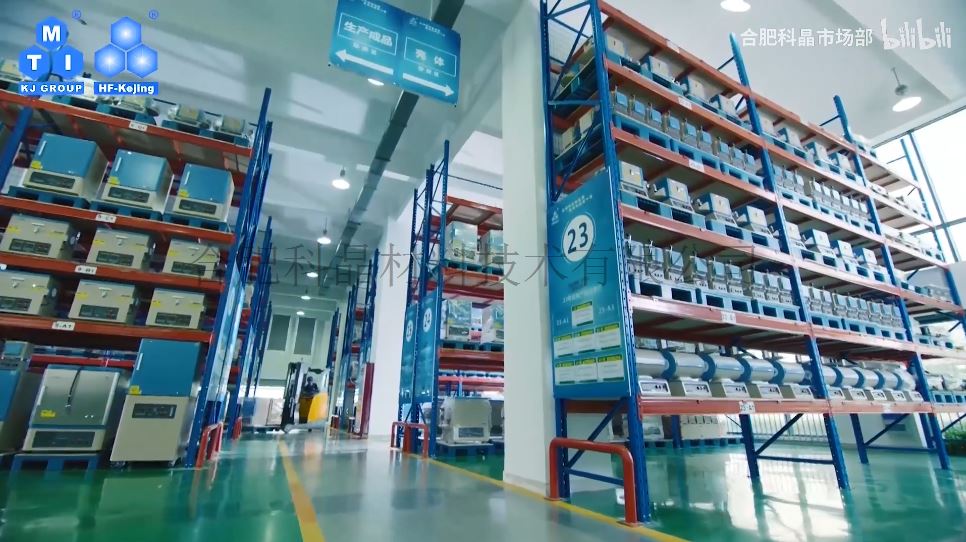

合肥科晶品牌紀錄片                                     公司環境
